Base class that binds RovizItem to the itemframework/Qt. More...

#include <roviz_item_base_dev.h>

Inheritance diagram for RovizItemBaseDev:

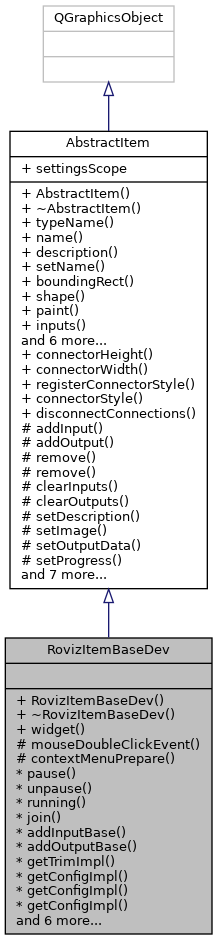

Collaboration diagram for RovizItemBaseDev:

Public Member Functions
	RovizItemBaseDev (std::string type_name)

virtual QWidget *	widget (void)

Public Member Functions inherited from AbstractItem
	AbstractItem (QString typeName)
	Constructs an AbstractItem with the name typeName. More...

QString	typeName () const

QString	name () const

QString	description () const

void	setName (QString name)
	Set this items name. More...

QRectF	boundingRect () const override
	Returns the bounding box of the item. More...

QPainterPath	shape () const override
	Returns the graphical shape of the item's image. More...

void	paint (QPainter painter, const QStyleOptionGraphicsItem option, QWidget *widget=0) override
	Paints the contents of the item. More...

QList< ItemInput * > const	inputs () const

QList< ItemOutput * > const	outputs () const

QImage const	image () const

int	progress () const

virtual bool	load (class QDomElement &element)
	Loads persistent settings for this item from given XML element. More...

virtual bool	save (class QDomDocument &document, class QDomElement &element) const
	Saves persistent settings for this item into the given XML element. More...

SettingsScope *	settingsScope () const
	Returns a pointer to the settings scope associated with this item. More...

Protected Member Functions
void	mouseDoubleClickEvent (QGraphicsSceneMouseEvent *event) override
	Opens the item in the SharedWindow.

void	contextMenuPrepare (QMenu &menu) const override
	Show the 'Configure' option in the context menu if the item has configs. More...

Protected Member Functions inherited from AbstractItem
ItemInput *	addInput (int transportType, QString const &description="")
	Adds an input to this item. More...

ItemOutput *	addOutput (int transportType, QString const &description="")
	Adds an output to this item. More...

void	remove (ItemInput *input)
	Removes an input from this item. More...

void	remove (ItemOutput *output)
	Removes an output from this item. More...

void	clearInputs ()
	Remove all the inputs from this item. More...

void	clearOutputs ()
	Remove all the outputs from this item. More...

void	setDescription (QString const &description)
	Set the description of the item. More...

void	setImage (QImage const &image)
	Set the image displayed in the item. More...

void	setOutputData (ItemOutput output, QObject data)
	Set the data of a given output. More...

void	setProgress (int progress)
	Set the current progress of the item. More...

void	setProgressAutohide (int ms)
	Sets the progress to -1 after a certain amount of time. More...

virtual void	paintItemBox (QPainter *painter)
	This Method paints the Item Rectangle, the Icon and the progress bar of the item. Override for custom behavior. More...

void	timerEvent (QTimerEvent *t) override

QVariant	itemChange (GraphicsItemChange change, const QVariant &value) override

void	contextMenuEvent (QGraphicsSceneContextMenuEvent *event) override

Friends
class	RovizItemBaseDevPrivate

Interface implementation
Implementation of the interface that RovizItem demands. See the documentation of RovizItem to see what these functions do.
virtual void	pause (void)=0

virtual void	unpause (void)=0

virtual bool	running (void) const =0

virtual void	join (void)=0

template<class T >
Input< T >	addInputBase (std::string name, RovizItem *item)

template<class T >
Output< T >	addOutputBase (std::string name)

TrimImpl *	getTrimImpl (std::string name, double default_value, double min, double max, int steps, bool logarithmic, std::function< void(double)> notifier_func)

ConfigImpl *	getConfigImpl (const std::string &name, const typename ConfigStorageType< int >::type &default_value, int min, int max, bool restart_when_changed)

ConfigImpl *	getConfigImpl (const std::string &name, const typename ConfigStorageType< double >::type &default_value, double min, double max, bool restart_when_changed)

ConfigImpl *	getConfigImpl (const std::string &name, const typename ConfigStorageType< std::string >::type &default_value, std::function< bool(std::string &)> checker, bool restart_when_changed)

ConfigImpl *	getConfigImpl (const std::string &name, const typename ConfigStorageType< std::list< std::string > >::type &default_index, const std::list< std::string > &possibilities, bool restart_when_changed)

ConfigImpl *	getConfigImpl (const std::string &name, const typename ConfigStorageType< bool >::type &default_value, bool restart_when_changed)

ConfigImpl *	getConfigImpl (const std::string &name, const typename ConfigStorageType< FilePath >::type &default_value, enum FilePath::Mode file_mode, const std::string &filter, bool restart_when_changed)

virtual void	start (void)

virtual void	stop (void)

void	restart (void)

Additional Inherited Members
Public Slots inherited from AbstractItem
void	disconnectConnections ()
	Disconnects all connections from/to the item.

Signals inherited from AbstractItem
void	changed ()
	This signal should be emitted by the derived class whenever the items state has changed and needs to be saved again.

void	nameChanged ()
	This signal is emitted whenever the name has changed.

void	descriptionChanged ()
	This signal is emitted whenever the description has changed.

void	progressChanged ()
	This signal is emitted whenever the progress has changed.

Static Public Member Functions inherited from AbstractItem
static int	connectorHeight ()

static int	connectorWidth ()

static bool	registerConnectorStyle (QColor const &color, int transportType)
	Register a connector style for a transport type. More...

static QPen	connectorStyle (int transportType)

Properties inherited from AbstractItem
SettingsScope	settingsScope

Detailed Description

Base class that binds RovizItem to the itemframework/Qt.

See also: RovizItem; RovizItemDevBasePrivate

Constructor & Destructor Documentation

◆ RovizItemBaseDev()

RovizItemBaseDev::RovizItemBaseDev ( std::string type_name )

explicit

Parameters

type_name Name of the item

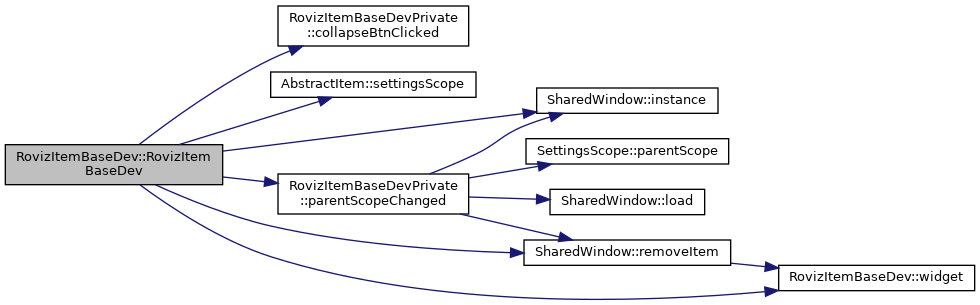

Here is the call graph for this function:

Member Function Documentation

◆ contextMenuPrepare()

void RovizItemBaseDev::contextMenuPrepare ( QMenu & menu ) const

overrideprotectedvirtual

Show the 'Configure' option in the context menu if the item has configs.

Parameters

menu	The context menu

Reimplemented from AbstractItem.

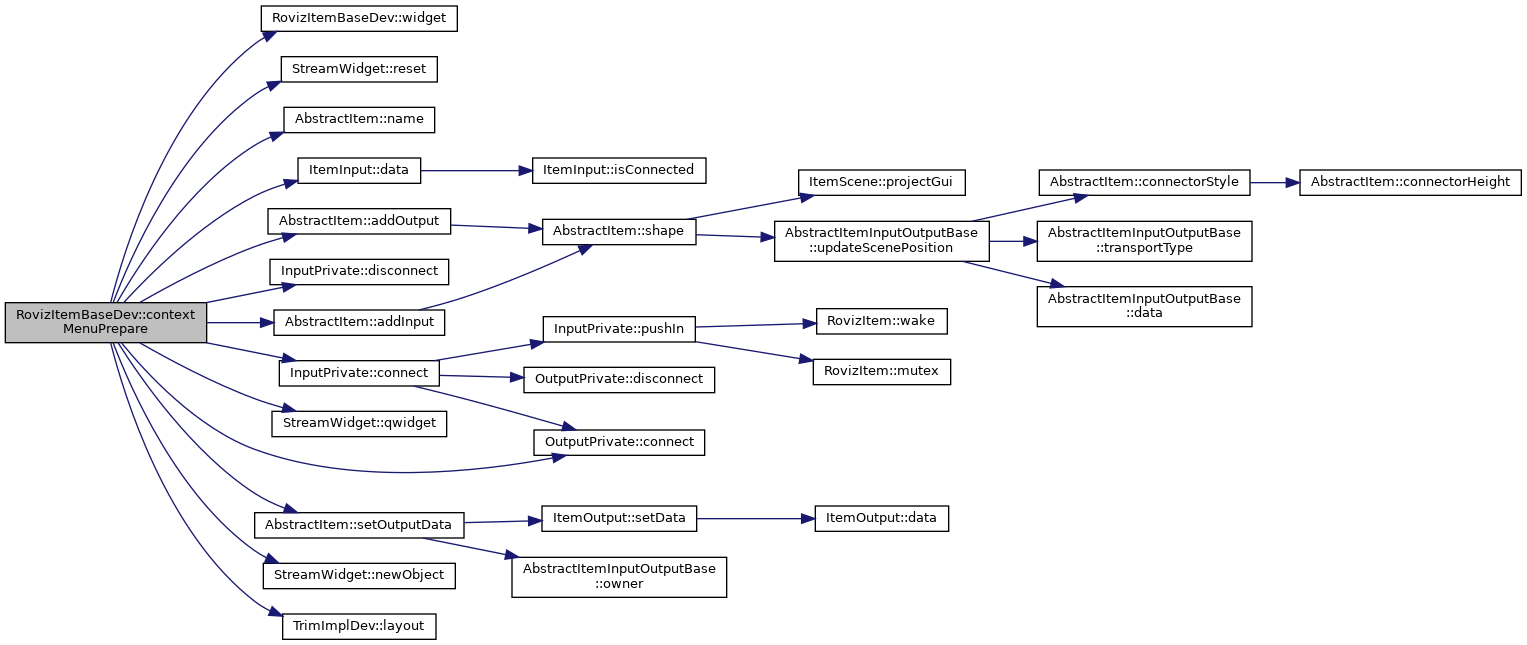

Here is the call graph for this function:

◆ widget()

QWidget * RovizItemBaseDev::widget ( void )

virtual

Returns: The main widget of the item

Can be overwritten to show a custom widget. Before doing that, consider using a custom stream and setting a new widget there.

See also: SharedWindow

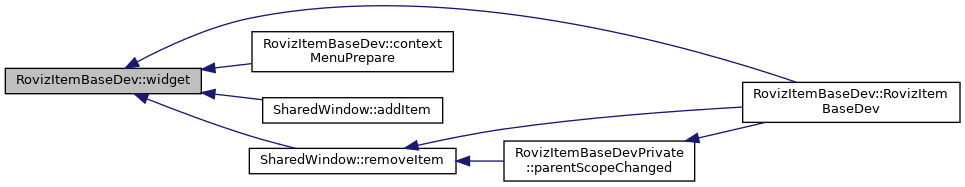

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

usercore/include/backend_dev/roviz_item_base_dev.h
usercore/src/backend_dev/roviz_item_base_dev.cpp
