The SettingsScope class acts as a container for scoped settings. More...

#include <settings_scope.h>

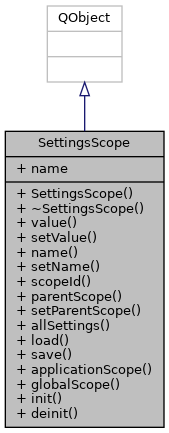

Inheritance diagram for SettingsScope:

Collaboration diagram for SettingsScope:

Signals
void	valueChanged (const QString &key, const QVariant &value)
	Emitted when a setting value changed or the setting is removed. If removed, value is an invalid variant. More...

void	scopeChanged ()
	Emitted when this settings scope changes, i.e. a setting is added or removed to this scope or a setting from this scope changed or a property of this scope (e.g. the name) changed. More...

void	parentScopeChanged (SettingsScope *old)
	Emitted when the parent of the scope changed. More...

Public Member Functions
	SettingsScope (const QString &name, SettingsScope *parent=0)
	Constructs a new SettingsScope named name with parent setting scope parent. More...

virtual	~SettingsScope ()
	Destroys the SettingsScope.

QVariant	value (const QString &key, QVariant defaultValue=QVariant(), bool searchAll=true) const
	Returns the variant value of the setting identified by key. More...

void	setValue (const QString &key, const QVariant &value)
	Sets the setting identified by key to value. More...

const QString &	name () const
	Returns the name associated with this settings scope. More...

void	setName (const QString &name)
	Sets the name associated with this settings scope to name. More...

QString	scopeId () const
	Returns a string identifier for this settings scope. More...

SettingsScope *	parentScope () const
	Returns the parent setting scope or `NULL`, if this settings scope has no parent settings scope. More...

void	setParentScope (SettingsScope *newParent)
	Attaches newParent as parent scope. More...

QHash< QString, QVariant >	allSettings (bool recurse=false)
	Returns a map with all settings. More...

bool	load (const QDomElement &parent)
	Loads persisted settings scope from given DOM element parent. More...

bool	save (QDomDocument &doc, QDomElement &parent)
	Persists this settings scope to given DOM element parent. More...

Static Public Member Functions
static SettingsScope *	applicationScope ()
	Returns the top level application scope. More...

static SettingsScope *	globalScope ()
	Returns the global scope. More...

static void	init ()
	This function has to be called once at start in order to initialize global and application settings scope. More...

static void	deinit ()
	This function has to be called once at application end in order to save the global and application settings. More...

Properties
QString	name
	The name associated with this settings scope. More...

Detailed Description

The SettingsScope class acts as a container for scoped settings.

The SettingsScope class stores key/value pairs which can be set using setValue() and retrieved with value(). The key/value pairs can be persisted and restored using save() and load().

Creation, update and deletion of a setting is signaled with valueChanged() signal.

A SettingsScope is identified by its name() and can have a parent SettingsScope. If a setting value is requested and cannot be found in this SettingScope, the parent is consulted.

Constructor & Destructor Documentation

◆ SettingsScope()

SettingsScope::SettingsScope	(	const QString &	name,
		SettingsScope *	parent = `0`
	)

explicit

Constructs a new SettingsScope named name with parent setting scope parent.

Parameters

name	The name to be associated with the settings scope.
parent	An optional settings scope parent.

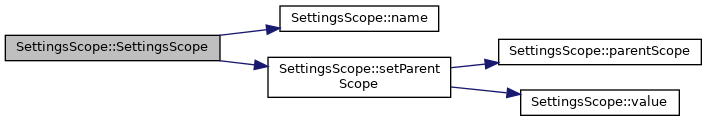

Here is the call graph for this function:

Member Function Documentation

◆ allSettings()

QHash< QString, QVariant > SettingsScope::allSettings ( bool recurse = false )

Returns a map with all settings.

If recurse is false, only settings from this scope will be included.

If recurse is true, the settings from all parents up the chain will be merged to the output so that parent settings will never override settings from lower levels.

Parameters

recurse If false, only settings from this scope will be returned. If false, settings from all parents up the chain will be returned.

Returns: A map with all settings.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ applicationScope()

SettingsScope * SettingsScope::applicationScope ( )

static

Returns the top level application scope.

Returns: The top level application scope.

Here is the caller graph for this function:

◆ deinit()

void SettingsScope::deinit ( )

static

This function has to be called once at application end in order to save the global and application settings.

Usually you would call StartupHelper::addComponent<SettingsScope>(); somewhere in your application initialization phase.

See also: StartupHelper

Here is the call graph for this function:

◆ globalScope()

SettingsScope * SettingsScope::globalScope ( )

static

Returns the global scope.

The global scope is a single scope without a parent or being parent. It acts as a global settings store for settings that do not need a hierarchical configuration.

Returns: The global scope.

◆ init()

void SettingsScope::init ( )

static

This function has to be called once at start in order to initialize global and application settings scope.

Usually you would call StartupHelper::addComponent<SettingsScope>(); somewhere in your application initialization phase.

See also: StartupHelper

Here is the call graph for this function:

◆ load()

bool SettingsScope::load ( const QDomElement & parent )

Loads persisted settings scope from given DOM element parent.

Returns true on success, false otherwise.

Parameters

parent The DOM element to read the the persisted settings scope from.

Returns: true on success, false otherwise.

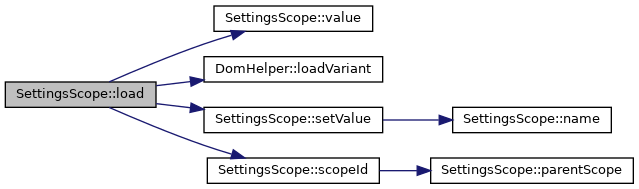

Here is the call graph for this function:

Here is the caller graph for this function:

◆ name()

const QString& SettingsScope::name ( ) const

Returns the name associated with this settings scope.

Returns: The name associated with this settings scope.

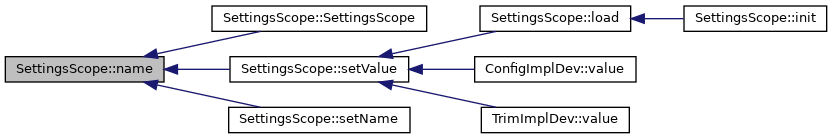

Here is the caller graph for this function:

◆ parentScope()

SettingsScope* SettingsScope::parentScope ( ) const

inline

Returns the parent setting scope or NULL, if this settings scope has no parent settings scope.

Returns: The parent setting scope or NULL, if this settings scope has no parent settings scope.

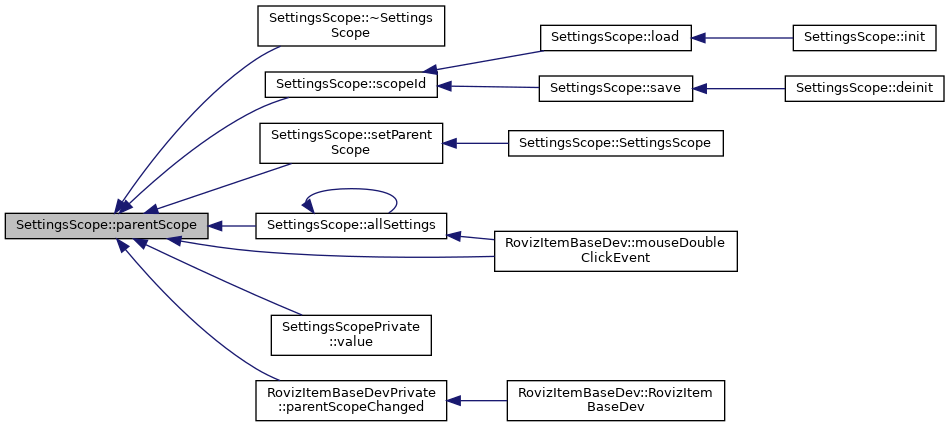

Here is the caller graph for this function:

◆ parentScopeChanged

void SettingsScope::parentScopeChanged ( SettingsScope * old )

signal

Emitted when the parent of the scope changed.

Parameters

old	The previous parent

Here is the caller graph for this function:

◆ save()

bool SettingsScope::save	(	QDomDocument &	doc,
		QDomElement &	parent
	)

Persists this settings scope to given DOM element parent.

Parameters

doc
parent

Here is the call graph for this function:

Here is the caller graph for this function:

◆ scopeChanged

void SettingsScope::scopeChanged ( )

signal

Emitted when this settings scope changes, i.e. a setting is added or removed to this scope or a setting from this scope changed or a property of this scope (e.g. the name) changed.

Note that changes to other settings scopes in the parent chain will not emit this signal for this scope, scopeChanged() will be emitted for the related scope where the change was done.

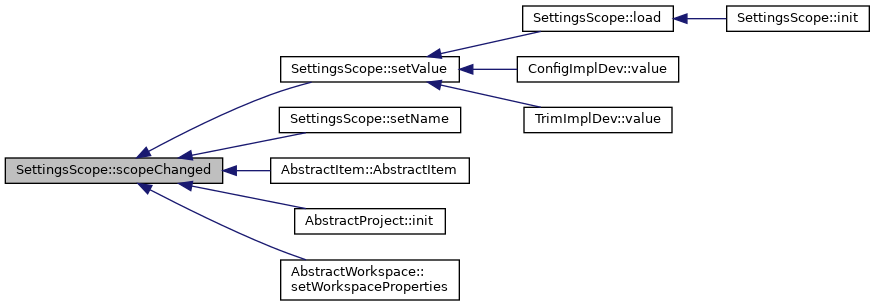

Here is the caller graph for this function:

◆ scopeId()

QString SettingsScope::scopeId ( ) const

Returns a string identifier for this settings scope.

The identifier is build using the parent scope path to the top level scope. It lists all scope names starting from top level scope to this settings scope, delimited by ':'.

Returns: A string identifier for this settings scope.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setName()

void SettingsScope::setName ( const QString & name )

Sets the name associated with this settings scope to name.

The name should be unique across the whole settings scope hierarchy!

Parameters

name	The new name.

Here is the call graph for this function:

◆ setParentScope()

void SettingsScope::setParentScope ( SettingsScope * newParent )

Attaches newParent as parent scope.

Parameters

newParent the new parent scope.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setValue()

void SettingsScope::setValue	(	const QString &	key,
		const QVariant &	value
	)

Sets the setting identified by key to value.

If value is invalid and the setting is defined in this settings scope, it will be removed from this settings scope.

Signal valueChanged() and scopeChanged() is emitted. The valueChanged() signal will also be dispatched to every child scope down the chain until a child has no setting for the same key.

Parameters

key	The setting key.
value	The setting's value. If invalid, the setting is removed from this settings scope.

Here is the call graph for this function:

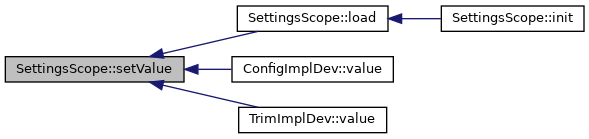

Here is the caller graph for this function:

◆ value()

QVariant SettingsScope::value	(	const QString &	key,
		QVariant	defaultValue = `QVariant()`,
		bool	searchAll = `true`
	)		const

Returns the variant value of the setting identified by key.

If key cannot be found in this scope and searchAll is true, all parent scopes up the parent chain are consulted until a defined value was found.

If searchAll is false, only scope is consulted.

If no defined value can be found in either way, the function returns defaultValue. If no explicit default value is specified, an invalid variant is returned.

Parameters

key	The setting key.
defaultValue	Default value to be returned, if no defined value could be found.
searchAll	If `true`, all parent scopes up the parent chain are consulted until a defined value was found. If `false`, only scope is consulted.

Returns: The variant value of the setting identified by key or defaultValue, if the setting could not be found.

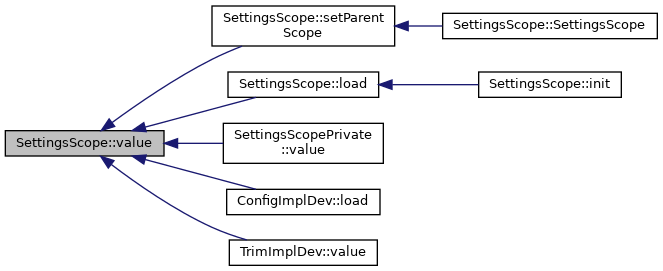

Here is the caller graph for this function:

◆ valueChanged

void SettingsScope::valueChanged	(	const QString &	key,
		const QVariant &	value
	)

signal

Emitted when a setting value changed or the setting is removed. If removed, value is an invalid variant.

Note that this signal is also emitted when a parent settings scope has changed a setting value but this settings scope has no related setting. This is because a setting can be specified in a higher level scope and will be reflected to the lower level scopes, if the lower scopes have no definition for the same setting.

Parameters

key	The related setting key.
value	The new setting value.

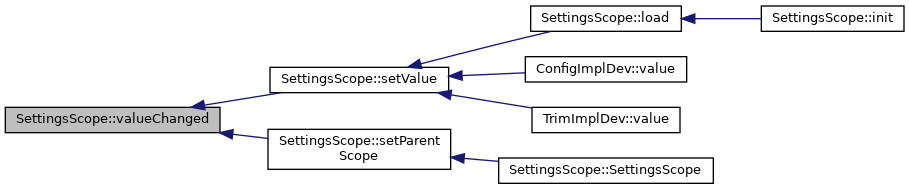

Here is the caller graph for this function:

Property Documentation

◆ name

const QString & SettingsScope::name

readwrite

The name associated with this settings scope.

The settings scope name should be unique across the whole hierarchy! Not checked at the moment!

The documentation for this class was generated from the following files:

itemframework/itemframework/include/helper/settings_scope.h
itemframework/itemframework/moc/moc_settings_scope.cpp
itemframework/itemframework/src/helper/settings_scope.cpp
