ItemInput Class Reference

The ItemInput class represents an input that belongs to an item. More...

#include <item_input.h>

Inheritance diagram for ItemInput:

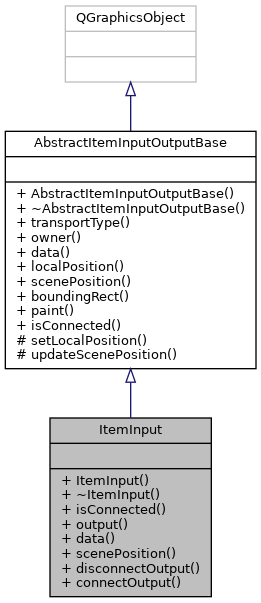

Collaboration diagram for ItemInput:

Signals
void	outputDisconnected ()
	This signal is emitted whenever the output this input is connected to is disconnected. More...
void	outputConnected ()
	This signal is emitted whenever this input is connected to a new output. More...
void	dataChanged ()
	This signal is emitted whenever the data provided by this input has changed.
Signals inherited from AbstractItemInputOutputBase
void	positionChanged ()
	This signal is emitted whenever this objects local or scene position has changed. More...

Public Member Functions
	ItemInput (AbstractItem *owner, int transportType, QString const &description, QRectF const &shape={0, 0, 0, 0})
	Constructs an ItemInput. More...
virtual bool	isConnected () const
ItemOutput *	output () const
QObject *	data () const
virtual QPointF	scenePosition () const
	Returns the scene position of this object. More...
void	disconnectOutput ()
	Disconnects the output this input is connected to, if any. More...
bool	connectOutput (ItemOutput *output)
	Connects this input to the output output. More...
Public Member Functions inherited from AbstractItemInputOutputBase
	AbstractItemInputOutputBase (class AbstractItem *parent, int transportType, QString const &description, QRectF const &shape)
	Constructs an AbstractItemInputOutputBase. More...
int	transportType () const
	Returns the type of data this object handles. More...
AbstractItem *	owner () const
	Returns the owner of this object. More...
virtual QPointF	localPosition () const
	Returns the local position of this object. More...
virtual QRectF	boundingRect () const
virtual void	paint (QPainter *painter, QStyleOptionGraphicsItem const *option, QWidget *widget)

Additional Inherited Members
Protected Member Functions inherited from AbstractItemInputOutputBase
void	setLocalPosition (QPointF const &position)
	Sets the local position of this object. More...
void	updateScenePosition ()
	Updates the scene position. Causes this objects position within the item scene to be updated. More...

Detailed Description

The ItemInput class represents an input that belongs to an item.

An input can be connected to zero or one output from which it receives data.

An inputs transport type specifies what type of data it supports. Only inputs and outputs that have the same transport type may be connected to each other. See the AbstractItem class for a description of the transport type.

See also

Item

ItemOutput

ItemInputOutputBase

Constructor & Destructor Documentation

ItemInput()

ItemInput::ItemInput	(	AbstractItem *	owner,
		int	transportType,
		QString const &	description,
		QRectF const &	shape = {0, 0, 0, 0}
	)

Constructs an ItemInput.

Parameters

owner	The Item this input belongs to
transportType	The type of data this input accepts
description	A description of this input that is shown to the user
shape	The shape of this input

Member Function Documentation

connectOutput()

bool ItemInput::connectOutput

(

ItemOutput *

output

)

Connects this input to the output output.

Parameters

output

The output this input is to be connected to

Returns

true upon success, false otherwise. The function fails if this input is alread connected to an output, a NULL output is provided or the types of data of the input and output do not match.

See also

disconnectOutput

output

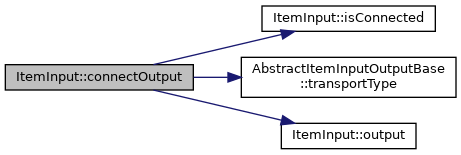

Here is the call graph for this function:

data()

QObject * ItemInput::data ( ) const

virtual

Returns

A pointer to the data provided by this input

Implements AbstractItemInputOutputBase.

Here is the call graph for this function:

Here is the caller graph for this function:

disconnectOutput()

void ItemInput::disconnectOutput

(

)

Disconnects the output this input is connected to, if any.

See also

connectOutput

output

Here is the call graph for this function:

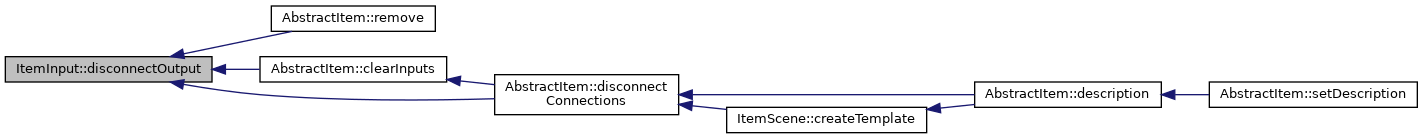

Here is the caller graph for this function:

isConnected()

bool ItemInput::isConnected ( ) const

virtual

Returns

true if this input is connected to an output, false otherwise

See also

connectOutput

disconnectOutput

Implements AbstractItemInputOutputBase.

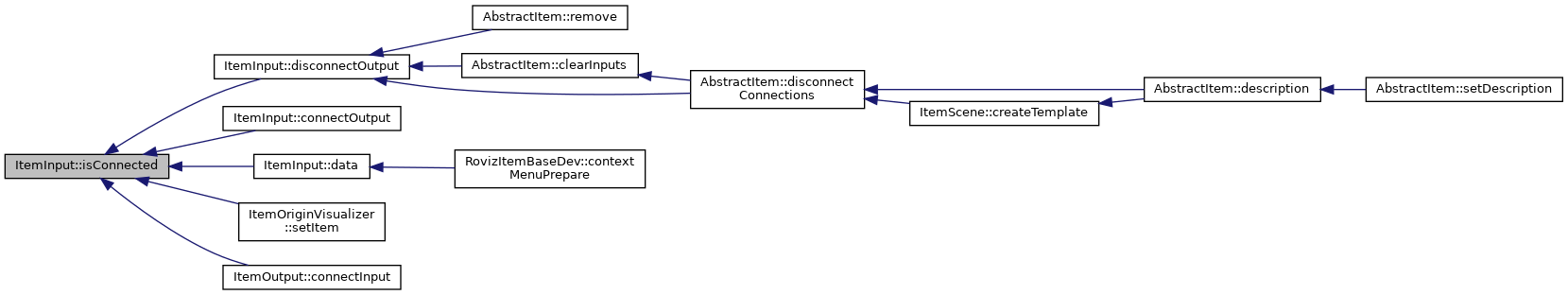

Here is the caller graph for this function:

output()

ItemOutput * ItemInput::output

(

)

const

Returns

A pointer to the output this input is connected to, or NULL if this input is not connected to any output.

See also

connectOutput

disconnectOutput

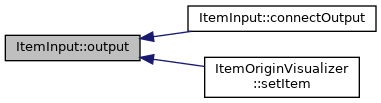

Here is the caller graph for this function:

outputConnected

void ItemInput::outputConnected ( )

signal

This signal is emitted whenever this input is connected to a new output.

See also

outputDisconnected

outputDisconnected

void ItemInput::outputDisconnected ( )

signal

This signal is emitted whenever the output this input is connected to is disconnected.

See also

outputConnected

scenePosition()

QPointF ItemInput::scenePosition ( ) const

virtual

Returns the scene position of this object.

Returns

The scene position of this object

See also

localPosition

Reimplemented from AbstractItemInputOutputBase.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• itemframework/itemframework/include/item/item_input.h
• itemframework/itemframework/moc/moc_item_input.cpp
• itemframework/itemframework/src/item/item_input.cpp
