The AbstractWindowItem class provides basic standard functionality for a typical item that uses a window. More...

#include <abstract_window_item.h>

Inheritance diagram for AbstractWindowItem:

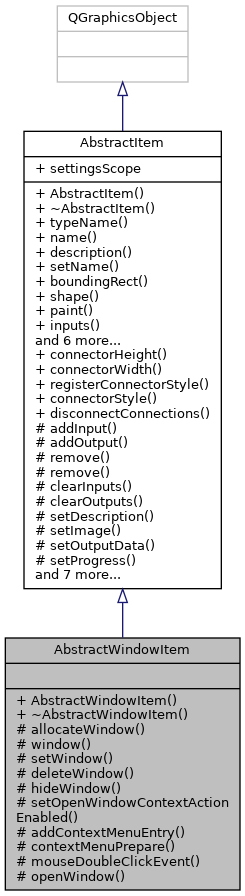

Collaboration diagram for AbstractWindowItem:

Public Member Functions
	AbstractWindowItem (QString const &typeName)
	Constructs a AbstractWindowItem with the given name. More...

Public Member Functions inherited from AbstractItem
	AbstractItem (QString typeName)
	Constructs an AbstractItem with the name typeName. More...

QString	typeName () const

QString	name () const

QString	description () const

void	setName (QString name)
	Set this items name. More...

QRectF	boundingRect () const override
	Returns the bounding box of the item. More...

QPainterPath	shape () const override
	Returns the graphical shape of the item's image. More...

void	paint (QPainter painter, const QStyleOptionGraphicsItem option, QWidget *widget=0) override
	Paints the contents of the item. More...

QList< ItemInput * > const	inputs () const

QList< ItemOutput * > const	outputs () const

QImage const	image () const

int	progress () const

virtual bool	load (class QDomElement &element)
	Loads persistent settings for this item from given XML element. More...

virtual bool	save (class QDomDocument &document, class QDomElement &element) const
	Saves persistent settings for this item into the given XML element. More...

SettingsScope *	settingsScope () const
	Returns a pointer to the settings scope associated with this item. More...

Protected Slots
virtual void	openWindow ()
	This is a default implementation of a slot which opens this items window, if any. If the item is not allocated yet, it uses allocateWindow to request one from the derived class. Override this function for custom behavior.

Protected Member Functions
virtual QMainWindow *	allocateWindow ()=0
	This is a pure virtual function. The implementation has to construct and return a QMainWindow which this base class can then manage. More...

QMainWindow *	window () const

void	setWindow (QMainWindow *window)

void	deleteWindow ()
	Deletes the window of this item. More...

void	hideWindow ()
	Hides the window of this item. More...

void	setOpenWindowContextActionEnabled (bool enabled) const
	This function allows the derived class to enable or disable the context menu option to open this items window for the current context menu. It is typically called in contextMenuPrepare, if needed. The value is reset to its default (true) whenever the user opens a new context menu. More...

QAction *	addContextMenuEntry (QString const &text, std::function< void()> f=nullptr)
	This function adds a new context menu entry. More...

virtual void	contextMenuPrepare (QMenu &menu) const
	This method is called with an empty QMenu whenever a contextmenu on the current item is requested. Add Actions to Display them in the Menu. More...

virtual void	mouseDoubleClickEvent (QGraphicsSceneMouseEvent *event)
	A simple default implementation of the mouseDoubleClickEvent. Override to do custom things (e.g. open window) More...

Protected Member Functions inherited from AbstractItem
ItemInput *	addInput (int transportType, QString const &description="")
	Adds an input to this item. More...

ItemOutput *	addOutput (int transportType, QString const &description="")
	Adds an output to this item. More...

void	remove (ItemInput *input)
	Removes an input from this item. More...

void	remove (ItemOutput *output)
	Removes an output from this item. More...

void	clearInputs ()
	Remove all the inputs from this item. More...

void	clearOutputs ()
	Remove all the outputs from this item. More...

void	setDescription (QString const &description)
	Set the description of the item. More...

void	setImage (QImage const &image)
	Set the image displayed in the item. More...

void	setOutputData (ItemOutput output, QObject data)
	Set the data of a given output. More...

void	setProgress (int progress)
	Set the current progress of the item. More...

void	setProgressAutohide (int ms)
	Sets the progress to -1 after a certain amount of time. More...

virtual void	paintItemBox (QPainter *painter)
	This Method paints the Item Rectangle, the Icon and the progress bar of the item. Override for custom behavior. More...

void	timerEvent (QTimerEvent *t) override

QVariant	itemChange (GraphicsItemChange change, const QVariant &value) override

void	contextMenuEvent (QGraphicsSceneContextMenuEvent *event) override

Additional Inherited Members
Public Slots inherited from AbstractItem
void	disconnectConnections ()
	Disconnects all connections from/to the item.

Signals inherited from AbstractItem
void	changed ()
	This signal should be emitted by the derived class whenever the items state has changed and needs to be saved again.

void	nameChanged ()
	This signal is emitted whenever the name has changed.

void	descriptionChanged ()
	This signal is emitted whenever the description has changed.

void	progressChanged ()
	This signal is emitted whenever the progress has changed.

Static Public Member Functions inherited from AbstractItem
static int	connectorHeight ()

static int	connectorWidth ()

static bool	registerConnectorStyle (QColor const &color, int transportType)
	Register a connector style for a transport type. More...

static QPen	connectorStyle (int transportType)

Properties inherited from AbstractItem
SettingsScope	settingsScope

Detailed Description

The AbstractWindowItem class provides basic standard functionality for a typical item that uses a window.

It has a pure virtual function, allocateWindow. This function needs to be implemented by the derived class and is used by this base class to construct a window for this item.

See also: AbstractItem

Constructor & Destructor Documentation

◆ AbstractWindowItem()

AbstractWindowItem::AbstractWindowItem ( QString const & typeName )

explicit

Constructs a AbstractWindowItem with the given name.

Parameters

typeName The name of the item to construct

Member Function Documentation

◆ addContextMenuEntry()

QAction * AbstractWindowItem::addContextMenuEntry	(	QString const &	text,
		std::function< void()>	f = `nullptr`
	)

protected

This function adds a new context menu entry.

Parameters

text	The text to display for the context menu entry
f	The function to call when the user clicks the context menu entry

Returns: A pointer to the newly created context menu action

See also: contextMenuPrepare

◆ allocateWindow()

virtual QMainWindow* AbstractWindowItem::allocateWindow ( )

protectedpure virtual

This is a pure virtual function. The implementation has to construct and return a QMainWindow which this base class can then manage.

Returns: The window that belongs to this item

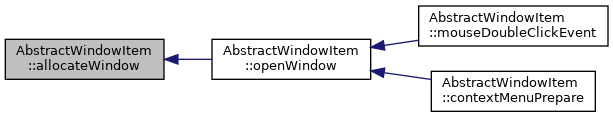

Here is the caller graph for this function:

◆ contextMenuPrepare()

void AbstractWindowItem::contextMenuPrepare ( QMenu & menu ) const

protectedvirtual

This method is called with an empty QMenu whenever a contextmenu on the current item is requested. Add Actions to Display them in the Menu.

Parameters

menu	The menu to append your items to.

Reimplemented from AbstractItem.

Here is the call graph for this function:

◆ deleteWindow()

void AbstractWindowItem::deleteWindow ( )

protected

Deletes the window of this item.

See also: window; setWindow; hideWindow

◆ hideWindow()

void AbstractWindowItem::hideWindow ( )

protected

Hides the window of this item.

See also: window; setWindow; deleteWindow

◆ mouseDoubleClickEvent()

void AbstractWindowItem::mouseDoubleClickEvent ( QGraphicsSceneMouseEvent * event )

protectedvirtual

A simple default implementation of the mouseDoubleClickEvent. Override to do custom things (e.g. open window)

Parameters

event Mouse event context information

Reimplemented from AbstractItem.

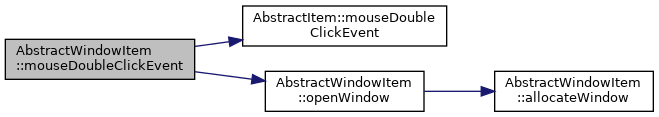

Here is the call graph for this function:

◆ setOpenWindowContextActionEnabled()

void AbstractWindowItem::setOpenWindowContextActionEnabled ( bool enabled ) const

protected

This function allows the derived class to enable or disable the context menu option to open this items window for the current context menu. It is typically called in contextMenuPrepare, if needed. The value is reset to its default (true) whenever the user opens a new context menu.

Parameters

enabled Whether or not to enable the context menu option to open the window
