Used to send messages across streams. More...
#include <message.h>
Inheritance diagram for Message:

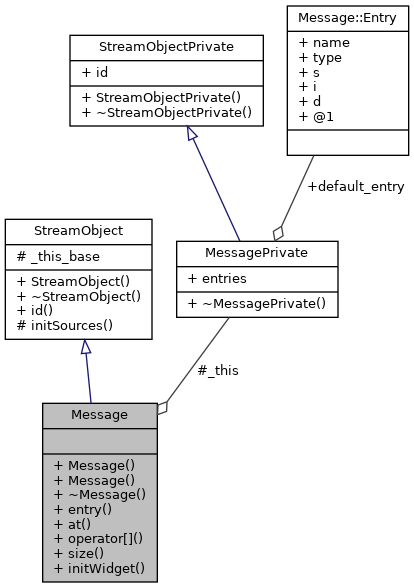

Collaboration diagram for Message:
Classes | |
| struct | Entry |
| An entry of a message. More... | |
Public Member Functions | |
| Message (const StreamObject &base) | |
| Message (std::initializer_list< SourceID > sources={}) | |
| const Entry & | entry (const std::string &name) const |
| Get an entry of the message. More... | |
| const Entry & | at (int index) const |
| Get an entry of the message. More... | |
| const Entry & | operator[] (int index) const |
| Get an entry of the message. More... | |
| int | size (void) const |
| Get the size of a message. More... | |
 Public Member Functions inherited from StreamObject | |
| SourceID | id (void) const |
| Get the SourceID of the object. More... | |
Static Public Member Functions | |
| static StreamWidget * | initWidget (OutputPrivate *out) |
Protected Attributes | |
| MessagePrivate * | _this |
| Protected Attributes inherited from StreamObject | |
| std::shared_ptr< StreamObjectPrivate > | _this_base |
Additional Inherited Members | |
| Protected Member Functions inherited from StreamObject | |
| void | initSources (std::initializer_list< SourceID > sources={}) |
Detailed Description
Used to send messages across streams.
This class provides an interface to send generic messages across streams. This could be useful for control signals or the like. It consists of a list of entries. Each entry has a name and a value. The type of the value can be either int, double or string.
- See also
- MessageMutable
- MessagePrivate
Member Function Documentation
◆ at()
| const Message::Entry & Message::at | ( | int | index | ) | const |
Get an entry of the message.
- Parameters
-
index The index of the entry
- Returns
- The entry
This function checks the bounds and returns an invalid entry if the index is out of bounds.
◆ entry()
| const Message::Entry & Message::entry | ( | const std::string & | name | ) | const |
Get an entry of the message.
- Parameters
-
name The name of the entry
- Returns
- The first entry with a matching name
If name is not found in the message, an invalid entry is returned.
Here is the caller graph for this function:
◆ operator[]()
| const Message::Entry & Message::operator[] | ( | int | index | ) | const |
Get an entry of the message.
- Parameters
-
index The index of the entry
- Returns
- The entry
WARNING: This function doesn't check the bounds!
◆ size()
| int Message::size | ( | void | ) | const |
Get the size of a message.
- Returns
- The amount of entries of this message
The documentation for this class was generated from the following files:
- usercore/include/streams/message.h
- usercore/src/streams/message.cpp
