Base class for all widgets representing a StreamObject. More...
#include <stream_widget.h>

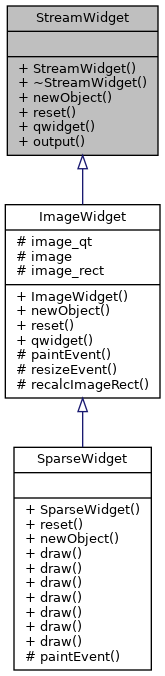

Inheritance diagram for StreamWidget:
Collaboration diagram for StreamWidget:
Public Member Functions | |
| StreamWidget (OutputPrivate *out) | |
| virtual void | newObject (StreamObject obj)=0 |
| Called when a new image arrived. More... | |
| virtual void | reset (void)=0 |
| Reset the widget to make it show the default image again. | |
| virtual QWidget * | qwidget (void)=0 |
| Convert this widget to a QWidget. More... | |
| OutputPrivate * | output (void) |
| Get the output associated with this widget. More... | |
Detailed Description
Base class for all widgets representing a StreamObject.
- See also
- StreamObject
Member Function Documentation
◆ newObject()
|
pure virtual |
Called when a new image arrived.
- Parameters
-
obj StreamObject representing the new object to display
Implemented in ImageWidget, and SparseWidget.
Here is the caller graph for this function:
◆ output()
| OutputPrivate * StreamWidget::output | ( | void | ) |
Get the output associated with this widget.
- Returns
- The output associated with this widget
◆ qwidget()
|
pure virtual |
Convert this widget to a QWidget.
- Returns
- The QWidget
Implemented in ImageWidget.
Here is the caller graph for this function:
The documentation for this class was generated from the following files:
- usercore/include/gui/stream_widget.h
- usercore/src/gui/stream_widget.cpp
