InputPrivate Class Reference

Private part of the Input class. More...

#include <input_p.h>

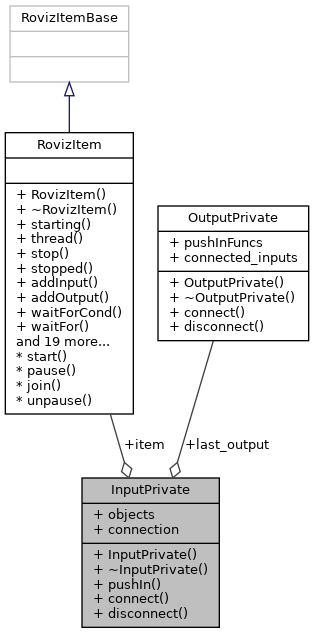

Collaboration diagram for InputPrivate:

Public Member Functions
void	pushIn (StreamObject obj)
	Add an object to the input queue. More...
void	connect (OutputPrivate *output)
	Connect this input to an output. More...
void	disconnect (void)
	Disconnect this input. More...

Public Attributes
RovizItem *	item
std::list< StreamObject >	objects
OutputPrivate::Connection	connection
OutputPrivate *	last_output

Detailed Description

Private part of the Input class.

This class is also used by the connection mechanism to push in new StreamObject's into the item.

See also

Input

Output

OutputPrivate

Member Function Documentation

connect()

void InputPrivate::connect

(

OutputPrivate *

output

)

Connect this input to an output.

Parameters

output

The output

Note: Connecting to a nullptr will disconnect this input.

See also

disconnect

pushIn

OutputPrivate::connect

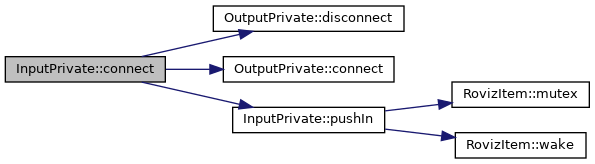

Here is the call graph for this function:

Here is the caller graph for this function:

disconnect()

void InputPrivate::disconnect

(

void

)

Disconnect this input.

See also

connect

Here is the caller graph for this function:

pushIn()

void InputPrivate::pushIn

(

StreamObject

obj

)

Add an object to the input queue.

Parameters

obj	The object

Called by the connected output to add a new object to the queue of an input.

See also

connect

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• usercore/include/core/input_p.h
• usercore/src/core/input_p.cpp
