#include <abstract_workspace.h>

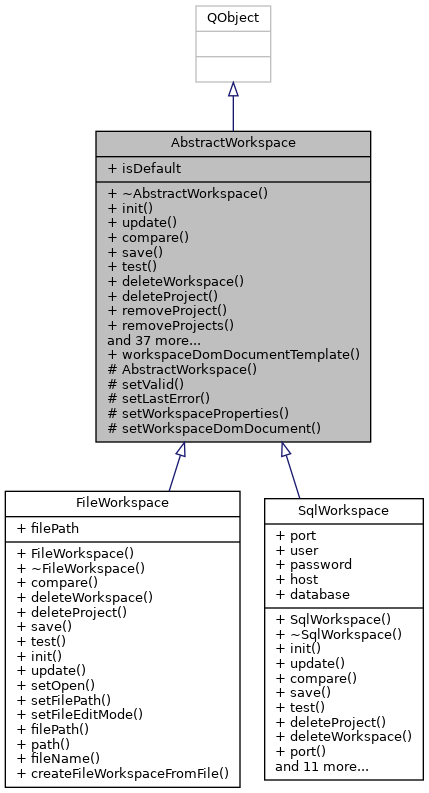

Inheritance diagram for AbstractWorkspace:

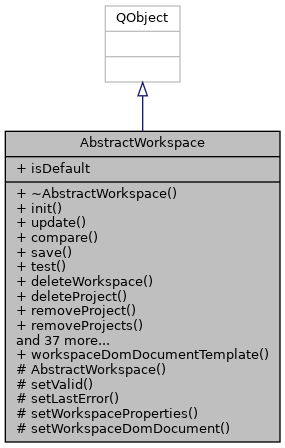

Collaboration diagram for AbstractWorkspace:

Signals
void	workspaceUpdated ()

void	isValidChanged (bool isValid)

void	workspaceNameChanged (const QString &workspaceName)

void	workspaceConnectionChanged (const QString &workspaceConnection)

void	workspaceDescriptionChanged (const QString &workspaceDescription)

void	projectDomDocumentChanged (const QSharedPointer< AbstractProject > &project)

Public Member Functions
virtual void	init ()=0
	Initialize the Workspace and set isValid flag. This function must be called, otherwise the workspace can't be valid. More...

virtual void	update ()=0
	Update the workspace after property changes. More...

virtual bool	compare (const QSharedPointer< AbstractWorkspace > &otherWorkspace) const =0
	Compare a other Workspace source with this Workspace source (not the Object adress). More...

virtual bool	save ()=0
	Save workspace with all settings. More...

virtual bool	test ()=0
	Workspace test procedure. The Test-Procedure is defined by the specific workspace class, which inherits from AbstractWorkspace class. More...

virtual bool	deleteWorkspace (bool deleteProjects=false)=0
	Delete workspace. The function deletes this workspace and all included projects, if the `deleteProjects` flag is set `true`. More...

virtual bool	deleteProject (const QSharedPointer< AbstractProject > &project)=0
	Delete a project and remove it from workspace. More...

bool	removeProject (const QSharedPointer< AbstractProject > &project)
	Remove a project from workspace. The project will not be deleted. More...

bool	removeProjects ()
	Remove all projects from workspace. The projects will not be deleted. More...

bool	saveProjects () const
	Save all projects in workspace. More...

bool	saveExternChangedProjects () const
	Save all projects in workspace which are changed by extern. More...

void	resetProjects () const
	Reset all projects in workspace. Reload the complete project structure from xml. All settings, which are not saved will be discarded and the project isDirty flag will be set to false.

void	resetExternChangedProjects () const
	Reset all projects in workspace which are changed by extern. More...

QStringList	projectNames () const

bool	validateWorkspaceDomDocument (const QDomDocument &domDocument)
	Validate a workspace DomDocument. More...

QDomDocument	workspaceDomDocument () const

QString	name () const

void	setName (const QString &name)
	Set the workspace name. More...

bool	isDefault () const

void	setDefault (bool isDefault)
	Set workspace as default workspace. On Traviz start this workspace will be loaded directly. No workspace manager will be shown. More...

QString	version () const

void	setVersion (const QString &version)
	Set the workspace version. If the version is not compatible with the application condition the workspace could not be loaded. More...

int	majorWorkspaceVersion () const

void	setMajorWorkspaceVersion (int majorWorkspaceVersion)
	Set the workspace major version. If the version is not compatible with the application condition the workspace could not be loaded. More...

int	minorWorkspaceVersion () const

void	setMinorWorkspaceVersion (int minorWorkspaceVersion)
	Set the workspace minor version. If the version is not compatible with the application condition the workspace could not be loaded. More...

QVector< QSharedPointer< AbstractProject > >	projects () const

QSharedPointer< AbstractProject >	project (QString connectionString) const

bool	addProject (const QSharedPointer< AbstractProject > &project)
	Add a project into workspace. More...

void	setProjects (const QVector< QSharedPointer< AbstractProject >> &projects)
	Set the vector of projects for a workspace. More...

int	projectCount () const

void	setConnectionString (const QString &connectionString)
	Set the Workspace connection string. The `connectionString` is unique source identifier inside a running Traviz application. More...

QString	connectionString () const
	The Workspace connection string holds the source connection information (e.g File-Workspace -> filename, Sql-Workspace -> Server and user information). The `connectionString` is unique inside a running Traviz application and can be used to identifier a workspace. More...

QString	description () const

void	setDescription (const QString &description)
	Set the workspace description. More...

bool	isOpen () const

virtual void	setOpen (bool isOpen)
	Set the workspace open (in use) state. More...

QString	className () const

SettingsScope *	settingsScope ()

QString	typeString () const

bool	isValid () const

const QString	lastError () const

void	clearLastError ()

bool	contains (const QSharedPointer< AbstractProject > &project) const

QString	lastUsedDateTime () const

void	setLastUsedDateTime (const QString &lastUsedDateTime)
	Set the workspace last used date value ("MM/dd/yyyy hh:mm:ss") More...

Static Public Member Functions
static QDomDocument	workspaceDomDocumentTemplate (const QString &name, const QString &version, const QString &description)
	This static function creates a clean workspace DomDocument. More...

Protected Member Functions
	AbstractWorkspace (const QString &typeString)
	AbstractWorkspace constructor with typeString definition (e,g. File, Sql). More...

void	setValid (bool isValid)
	Set the workspace valid. This property decides if a workspace is loadable or not. More...

void	setLastError (const QString &lastError)
	Set the last occured workspace error string. More...

bool	setWorkspaceProperties (const QDomDocument &domDocument)
	Set the workspace properties. The properties will be read from domDocument. More...

void	setWorkspaceDomDocument (const QDomDocument &workspaceDomDocument)
	Set the workspace dom document. The domdocument hold all information about the workspace (e.g version, name, last used date, projects). More...

Properties
bool	isDefault

Detailed Description

The AbstractWorkspace class defines a functional basic class for e.g. a file and sql workspace. A workspace can handle Traviz projects.

This class is part of the projectmanager feature.

Constructor & Destructor Documentation

◆ AbstractWorkspace()

AbstractWorkspace::AbstractWorkspace ( const QString & typeString )

protected

AbstractWorkspace constructor with typeString definition (e,g. File, Sql).

Parameters

typeString Define the type of workspace.

See also: typeString

Here is the call graph for this function:

Member Function Documentation

◆ addProject()

bool AbstractWorkspace::addProject ( const QSharedPointer< AbstractProject > & project )

Add a project into workspace.

Parameters

project The abstract project which should be inserted.

Returns: Returns true if the process was successfull, otherwise returns false.

See also: setProjects; projects; projectCount; deleteProject; removeProject

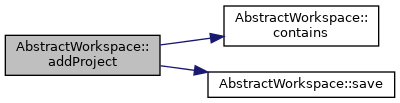

Here is the call graph for this function:

◆ className()

QString AbstractWorkspace::className ( ) const

Returns: Returns the metaObject className.

◆ clearLastError()

void AbstractWorkspace::clearLastError ( )

Returns: Clear the lastError string.

See also: lastError

◆ compare()

virtual bool AbstractWorkspace::compare ( const QSharedPointer< AbstractWorkspace > & otherWorkspace ) const

pure virtual

Compare a other Workspace source with this Workspace source (not the Object adress).

Parameters

otherWorkspace The Workspace to compare with.

Returns: Returns true if the other Workspace is equil (e.g. File-Workspace: same file), otherwise returns false.

Implemented in SqlWorkspace, and FileWorkspace.

◆ connectionString()

QString AbstractWorkspace::connectionString ( ) const

The Workspace connection string holds the source connection information (e.g File-Workspace -> filename, Sql-Workspace -> Server and user information). The connectionString is unique inside a running Traviz application and can be used to identifier a workspace.

Returns: Returns the workspace connection string.

See also: projectConnectionString

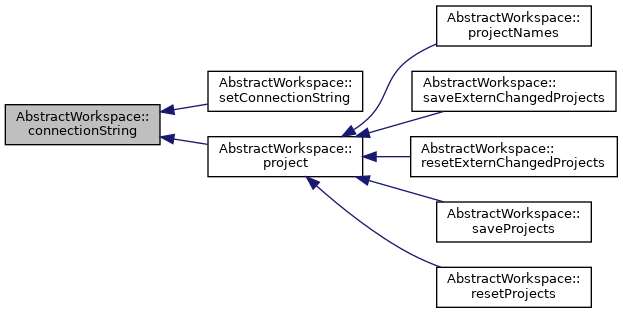

Here is the caller graph for this function:

◆ contains()

bool AbstractWorkspace::contains ( const QSharedPointer< AbstractProject > & project ) const

Parameters

project The abstract project.

Returns: Returns true if the workspace contains an occurrence of project;, otherwise returns false.

See also: projectCount

Here is the caller graph for this function:

◆ deleteProject()

virtual bool AbstractWorkspace::deleteProject ( const QSharedPointer< AbstractProject > & project )

pure virtual

Delete a project and remove it from workspace.

Parameters

project The project which should be deleted.

Returns: Returns true if the process was successfull, otherwise returns false.

See also: removeProject; removeProjects; saveProjects

Implemented in SqlWorkspace, and FileWorkspace.

◆ deleteWorkspace()

virtual bool AbstractWorkspace::deleteWorkspace ( bool deleteProjects = false )

pure virtual

Delete workspace. The function deletes this workspace and all included projects, if the deleteProjects flag is set true.

Parameters

deleteProjects The delete all projects flag (default = false).

Returns: Returns true if the process was successfull, otherwise returns false.

See also: deleteProject

Implemented in SqlWorkspace, and FileWorkspace.

◆ description()

QString AbstractWorkspace::description ( ) const

Returns: Returns the workspace description.

See also: setDescription

Here is the caller graph for this function:

◆ init()

virtual void AbstractWorkspace::init ( )

pure virtual

Initialize the Workspace and set isValid flag. This function must be called, otherwise the workspace can't be valid.

See also: update

Implemented in FileWorkspace, and SqlWorkspace.

◆ isDefault()

bool AbstractWorkspace::isDefault ( ) const

Returns: Returns true if the workspace is set as default workspace, otherwise returns false.

See also: setDefault

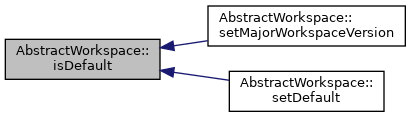

Here is the caller graph for this function:

◆ isOpen()

bool AbstractWorkspace::isOpen ( ) const

Returns: Returns true if the workspace is open (in use), otherwise it returns false.

See also: setOpen

Here is the caller graph for this function:

◆ isValid()

bool AbstractWorkspace::isValid ( ) const

Returns: Returns true if the workspace is valid, otherwise it returns false.

Here is the caller graph for this function:

◆ lastError()

const QString AbstractWorkspace::lastError ( ) const

Returns: Returns the last occured error as a string.

sa clearLastError

Here is the caller graph for this function:

◆ lastUsedDateTime()

QString AbstractWorkspace::lastUsedDateTime ( ) const

Returns: Returns the last used date time of the workspace as string.

See also: setLastUsedDateTime

◆ majorWorkspaceVersion()

int AbstractWorkspace::majorWorkspaceVersion ( ) const

Returns: Returns the workspace major version.

See also: version; setVersion; setMajorWorkspaceVersion; minorWorkspaceVersion; setMinorWorkspaceVersion

Here is the caller graph for this function:

◆ minorWorkspaceVersion()

int AbstractWorkspace::minorWorkspaceVersion ( ) const

Returns: Returns the workspace minor version.

See also: version; setVersion; majorWorkspaceVersion; setMajorWorkspaceVersion; setMinorWorkspaceVersion

Here is the caller graph for this function:

◆ name()

QString AbstractWorkspace::name ( ) const

Returns: Returns the workspace name.

See also: setName

Here is the caller graph for this function:

◆ project()

QSharedPointer< AbstractProject > AbstractWorkspace::project ( QString connectionString ) const

Returns: Returns the project based on his connectionString. Returns a Null QSharedPointer, if connectionString did not match.

See also: setProjects; projectCount; projects; connectionString

Here is the call graph for this function:

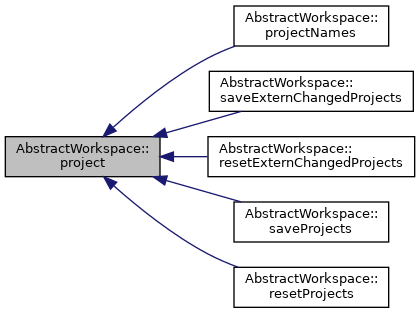

Here is the caller graph for this function:

◆ projectCount()

int AbstractWorkspace::projectCount ( ) const

Returns: Returns the number of projects in this workspace.

See also: projects; setProjects

◆ projectNames()

QStringList AbstractWorkspace::projectNames ( ) const

Returns: Returns a stringlist containing all project names, which are existent in workspace.

Here is the call graph for this function:

◆ projects()

QVector< QSharedPointer< AbstractProject > > AbstractWorkspace::projects ( ) const

Returns: Returns a vector of shared pointer to all available projects in this workspace.

See also: setProjects; projectCount

Here is the caller graph for this function:

◆ removeProject()

bool AbstractWorkspace::removeProject ( const QSharedPointer< AbstractProject > & project )

Remove a project from workspace. The project will not be deleted.

Parameters

project The project which should be removed.

Returns: Returns true if the process was successfull, otherwise returns false.

See also: deleteProject; removeProjects; saveProjects

Here is the call graph for this function:

◆ removeProjects()

bool AbstractWorkspace::removeProjects ( )

Remove all projects from workspace. The projects will not be deleted.

Returns: Returns true if the process was successfull, otherwise returns false.

See also: removeProject; deleteProject; saveProjects

Here is the call graph for this function:

◆ resetExternChangedProjects()

void AbstractWorkspace::resetExternChangedProjects ( ) const

Reset all projects in workspace which are changed by extern.

See also: resetProjects; saveExternChangedProjects; saveProjects

Here is the call graph for this function:

◆ save()

virtual bool AbstractWorkspace::save ( )

pure virtual

Save workspace with all settings.

Returns: Returns true if the Workspace was successfully saved, otherwise returns false.

Implemented in SqlWorkspace, and FileWorkspace.

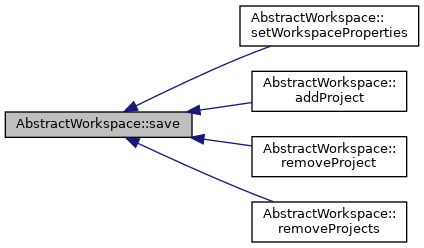

Here is the caller graph for this function:

◆ saveExternChangedProjects()

bool AbstractWorkspace::saveExternChangedProjects ( ) const

Save all projects in workspace which are changed by extern.

Returns: Returns true if the process was successfull, otherwise returns false.

See also: saveProjects; resetExternChangedProjects; resetProjects

Here is the call graph for this function:

◆ saveProjects()

bool AbstractWorkspace::saveProjects ( ) const

Save all projects in workspace.

Returns: Returns true if the process was successfull, otherwise returns false.

See also: removeProject; removeProjects; deleteProject

Here is the call graph for this function:

◆ setConnectionString()

void AbstractWorkspace::setConnectionString ( const QString & connectionString )

Set the Workspace connection string. The connectionString is unique source identifier inside a running Traviz application.

Parameters

connectionString The connection string.

See also: connectionString

Here is the call graph for this function:

◆ setDefault()

void AbstractWorkspace::setDefault ( bool isDefault )

Set workspace as default workspace. On Traviz start this workspace will be loaded directly. No workspace manager will be shown.

Parameters

isDefault The enable bool flag.

See also: isDefault

Here is the call graph for this function:

◆ setDescription()

void AbstractWorkspace::setDescription ( const QString & description )

Set the workspace description.

Parameters

description The workspace description.

See also: description

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setLastError()

void AbstractWorkspace::setLastError ( const QString & lastError )

protected

Set the last occured workspace error string.

Parameters

lastError The error string.

See also: lastError

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setLastUsedDateTime()

void AbstractWorkspace::setLastUsedDateTime ( const QString & lastUsedDateTime )

Set the workspace last used date value ("MM/dd/yyyy hh:mm:ss")

Parameters

lastUsedDateTime The last used date time of the workspace.

See also: lastUsedDateTime

◆ setMajorWorkspaceVersion()

void AbstractWorkspace::setMajorWorkspaceVersion ( int majorWorkspaceVersion )

Set the workspace major version. If the version is not compatible with the application condition the workspace could not be loaded.

Parameters

version The version value string.

See also: version; setVersion; majorWorkspaceVersion; minorWorkspaceVersion; setMinorWorkspaceVersion

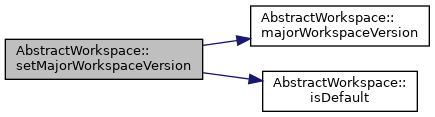

Here is the call graph for this function:

◆ setMinorWorkspaceVersion()

void AbstractWorkspace::setMinorWorkspaceVersion ( int minorWorkspaceVersion )

Set the workspace minor version. If the version is not compatible with the application condition the workspace could not be loaded.

Parameters

version The version value string.

See also: version; setVersion; majorWorkspaceVersion; setMajorWorkspaceVersion; minorWorkspaceVersion

Here is the call graph for this function:

◆ setName()

void AbstractWorkspace::setName ( const QString & name )

Set the workspace name.

Parameters

name	The name for the workspace.

See also: name

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setOpen()

void AbstractWorkspace::setOpen ( bool isOpen )

virtual

Set the workspace open (in use) state.

Parameters

isOpen The open flag.

See also: isOpen

Reimplemented in FileWorkspace.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setProjects()

void AbstractWorkspace::setProjects ( const QVector< QSharedPointer< AbstractProject >> & projects )

Set the vector of projects for a workspace.

Parameters

projects The vector of shared pointer to projects.

See also: projects; projectCount

Here is the call graph for this function:

◆ settingsScope()

SettingsScope * AbstractWorkspace::settingsScope ( )

Returns: Returns the workspace settings scope.

◆ setValid()

void AbstractWorkspace::setValid ( bool isValid )

protected

Set the workspace valid. This property decides if a workspace is loadable or not.

Parameters

isValid The valid flag.

See also: isValid

Here is the call graph for this function:

◆ setVersion()

void AbstractWorkspace::setVersion ( const QString & version )

Set the workspace version. If the version is not compatible with the application condition the workspace could not be loaded.

Parameters

version The version value string.

See also: version; majorWorkspaceVersion; setMajorWorkspaceVersion; minorWorkspaceVersion; setMinorWorkspaceVersion

Here is the call graph for this function:

◆ setWorkspaceDomDocument()

void AbstractWorkspace::setWorkspaceDomDocument ( const QDomDocument & workspaceDomDocument )

protected

Set the workspace dom document. The domdocument hold all information about the workspace (e.g version, name, last used date, projects).

Parameters

workspaceDomDocument The domdocument.

See also: workspaceDomDocument; validateWorkspaceDomDocument

Here is the call graph for this function:

◆ setWorkspaceProperties()

bool AbstractWorkspace::setWorkspaceProperties ( const QDomDocument & domDocument )

protected

Set the workspace properties. The properties will be read from domDocument.

Parameters

domDocument	Hold the workspace properties.
fallbackName	If no workspace name is set, the workspace fallback name will be used.

Returns: Returns true if the workspace properties are set and workspace is valid, otherwise it returns false.

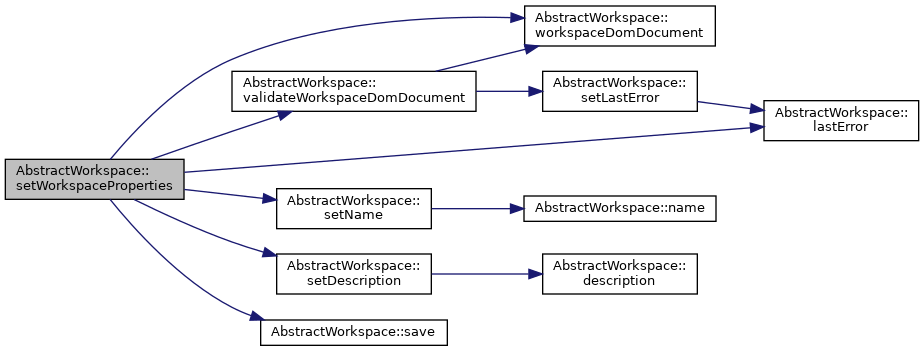

Here is the call graph for this function:

◆ test()

virtual bool AbstractWorkspace::test ( )

pure virtual

Workspace test procedure. The Test-Procedure is defined by the specific workspace class, which inherits from AbstractWorkspace class.

Returns: Returns true if the process was successfull, otherwise returns false.

Implemented in SqlWorkspace, and FileWorkspace.

◆ typeString()

QString AbstractWorkspace::typeString ( ) const

Returns: Returns the type string of a workspace (e,g. File, Sql).

Here is the caller graph for this function:

◆ update()

virtual void AbstractWorkspace::update ( )

pure virtual

Update the workspace after property changes.

See also: init

Implemented in FileWorkspace, and SqlWorkspace.

◆ validateWorkspaceDomDocument()

bool AbstractWorkspace::validateWorkspaceDomDocument ( const QDomDocument & domDocument )

Validate a workspace DomDocument.

Parameters

domDocument The Workspace DomDocument.

Returns: Returns true if the DomDocument is valid, otherwise returns false.

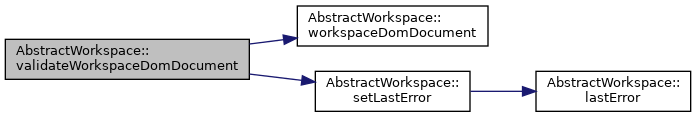

Here is the call graph for this function:

Here is the caller graph for this function:

◆ version()

QString AbstractWorkspace::version ( ) const

Returns: Returns the workspace version.

See also: setVersion; majorWorkspaceVersion; setMajorWorkspaceVersion; minorWorkspaceVersion; setMinorWorkspaceVersion

Here is the caller graph for this function:

◆ workspaceDomDocument()

QDomDocument AbstractWorkspace::workspaceDomDocument ( ) const

Returns: Returns the workspace dom document.

See also: validateWorkspaceDomDocument; workspaceDomDocumentTemplate

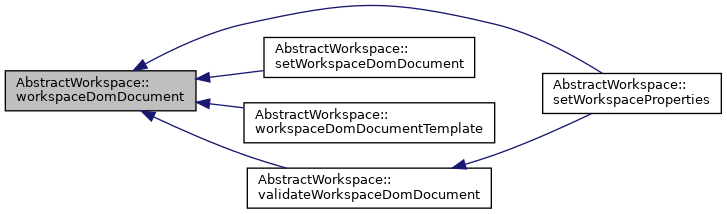

Here is the caller graph for this function:

◆ workspaceDomDocumentTemplate()

QDomDocument AbstractWorkspace::workspaceDomDocumentTemplate	(	const QString &	name,
		const QString &	version,
		const QString &	description
	)

static

This static function creates a clean workspace DomDocument.

Parameters

name	The Workspace name.
version	The Workspace version.
description	The Workspace description.

Returns: Returns a clean workspace DomDocument.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

itemframework/itemframework/src/project/abstract_workspace.h
itemframework/itemframework/moc/moc_abstract_workspace.cpp
itemframework/itemframework/src/project/abstract_workspace.cpp

Signals

Public Member Functions

Static Public Member Functions

Protected Member Functions

Properties

Detailed Description

Constructor & Destructor Documentation

◆ AbstractWorkspace()

Member Function Documentation

◆ addProject()

◆ className()

◆ clearLastError()

◆ compare()

◆ connectionString()

◆ contains()

◆ deleteProject()

◆ deleteWorkspace()

◆ description()

◆ init()

◆ isDefault()

◆ isOpen()

◆ isValid()

◆ lastError()

◆ lastUsedDateTime()

◆ majorWorkspaceVersion()

◆ minorWorkspaceVersion()

◆ name()

◆ project()

◆ projectCount()

◆ projectNames()

◆ projects()

◆ removeProject()

◆ removeProjects()

◆ resetExternChangedProjects()

◆ save()

◆ saveExternChangedProjects()

◆ saveProjects()

◆ setConnectionString()

◆ setDefault()

◆ setDescription()

◆ setLastError()

◆ setLastUsedDateTime()

◆ setMajorWorkspaceVersion()

◆ setMinorWorkspaceVersion()

◆ setName()

◆ setOpen()

◆ setProjects()

◆ settingsScope()

◆ setValid()

◆ setVersion()

◆ setWorkspaceDomDocument()

◆ setWorkspaceProperties()

◆ test()

◆ typeString()

◆ update()

◆ validateWorkspaceDomDocument()

◆ version()

◆ workspaceDomDocument()

◆ workspaceDomDocumentTemplate()
