StartupHelperPrivate Class Reference

Collaboration diagram for StartupHelperPrivate:

Static Public Member Functions
static bool	start ()
	Creates all Singletons and calls init() on Components in the correct order The function ensures that all dependencies marked with "dependsOn" are respected. More...
static bool	stop ()
	Deletes all Singleton Instances and calls deinit() on all Components The Singleton Instances and Components are called in reversed order compared to the startup. More...
static void	registerHandlers ()
	Registers the start and stop function at QApplication so that they will be called on appstart/appterm It's safe to call this function multiple times.
static bool	getClassesRecursive (QStringList backtrace, QStringList &globalDependencies, const ObjectState &object)
	getClassesRecursive gets all classes and their dependencies starting from the passed ObjectState. More...
static void	addComponentHelper (const QMetaObject &metaobj, internal::VoidFnPtr initFunc, internal::VoidFnPtr deinitFunc)
	addComponentHelper adds a component to the list of "tracked" modules More...
static void	addSingletonHelper (const QMetaObject &metaobj)
	addSingletonHelper adds a singleton to the list of "tracked" modules More...
static ObjectState *	findClass (QString classname)
	findClass finds a class in the list of registerd classes by name More...

Member Function Documentation

addComponentHelper()

void StartupHelperPrivate::addComponentHelper ( const QMetaObject &  metaobj, internal::VoidFnPtr  initFunc, internal::VoidFnPtr  deinitFunc  )

static

addComponentHelper adds a component to the list of "tracked" modules

Parameters

metaobj	the metaobject of the component to add
initFunc	a function pointer to the static init() function of the class or a nullptr
deinitFunc	a function pointer to the static deinit() function of the class or a nullptr

Here is the call graph for this function:

Here is the caller graph for this function:

addSingletonHelper()

void StartupHelperPrivate::addSingletonHelper ( const QMetaObject &  metaobj )

static

addSingletonHelper adds a singleton to the list of "tracked" modules

Parameters

metaobj

the metaobject of the singleton to add

Here is the call graph for this function:

Here is the caller graph for this function:

findClass()

ObjectState * StartupHelperPrivate::findClass ( QString  classname )

static

findClass finds a class in the list of registerd classes by name

Parameters

classname

name of the class to find

Returns

pointer to ObjectState or nullptr if not found

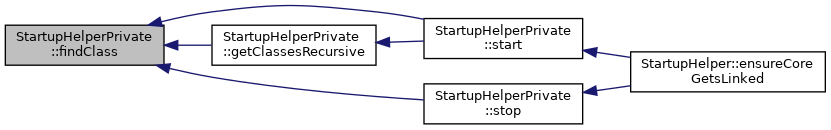

Here is the caller graph for this function:

getClassesRecursive()

bool StartupHelperPrivate::getClassesRecursive ( QStringList  backtrace, QStringList &  globalDependencies, const ObjectState &  object  )

static

getClassesRecursive gets all classes and their dependencies starting from the passed ObjectState.

Parameters

backtrace	the list of classes which depend on the current class
globalDependencies	the ordered list of classes which should be extended
object	the class to start with

Returns

true if dependencies are fine, false if we have missing or circular dependencies

Here is the call graph for this function:

Here is the caller graph for this function:

start()

bool StartupHelperPrivate::start ( )

static

Creates all Singletons and calls init() on Components in the correct order The function ensures that all dependencies marked with "dependsOn" are respected.

Returns

true if creation of all singletons, calling init() on all components and postInit() on all singletons succeeded.

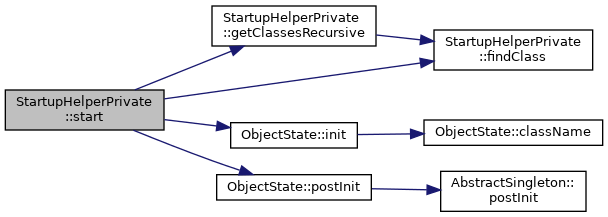

Here is the call graph for this function:

Here is the caller graph for this function:

stop()

bool StartupHelperPrivate::stop ( )

static

Deletes all Singleton Instances and calls deinit() on all Components The Singleton Instances and Components are called in reversed order compared to the startup.

Returns

true if calling preDestroy() on all singletons, deinit() on all components and deleting all singletons succeeded

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• itemframework/itemframework/src/helper/startup_helper_p.h
• itemframework/itemframework/src/helper/startup_helper.cpp
