PluginManager Class Reference

The PluginManager class. More...

#include <plugin_manager.h>

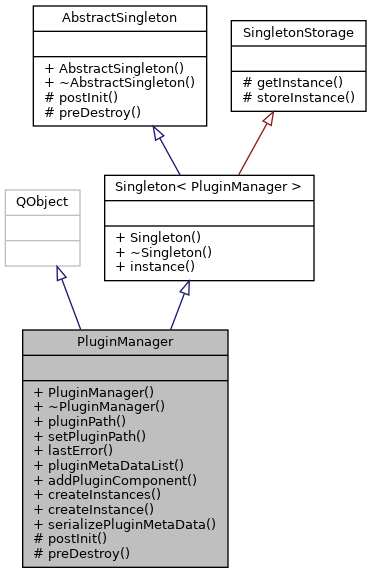

Inheritance diagram for PluginManager:

Collaboration diagram for PluginManager:

Public Slots
void	serializePluginMetaData (PluginMetaData *metaData)
	serializePluginState serializes the submitted meta data More...

Public Member Functions
QStringList const &	pluginPath ()
	pluginPath More...
void	setPluginPath (const QStringList &directory)
	setPluginPath adds a new directory path to the plugin path More...
QString const &	lastError ()
	lastError returns the last error message of the plugin manager More...
QList< PluginMetaData * >	pluginMetaDataList ()
	pluginMetaDataList returns the list of plugins found in the specified directories More...
template<class Derived , class Base >
void	addPluginComponent ()
	addPluginComponent adds a plugin component to internal list from where it can be instantiated later More...
template<class T >
QVector< T * >	createInstances ()
	createInstances creates all instances of a plugin and returns them in a vector More...
template<class T >
T *	createInstance (QString const &className)
	createInstance creates a single instance of a class from a given className More...

Protected Member Functions
bool	postInit ()
	postInit will be called after all components and singletons have been constructed/initialized More...
bool	preDestroy ()
	preDestroy will be called before any of the components and singletons will be destructed/deinitailized More...

Additional Inherited Members
Static Public Member Functions inherited from Singleton< PluginManager >
static PluginManager *	instance ()
	Returns the current instance of the singleton. More...

Detailed Description

The PluginManager class.

Member Function Documentation

addPluginComponent()

template<class Derived , class Base >

void PluginManager::addPluginComponent ( )

inline

addPluginComponent adds a plugin component to internal list from where it can be instantiated later

Parameters

class	Derived the class of the component
class	Base the class from wich the component inherits

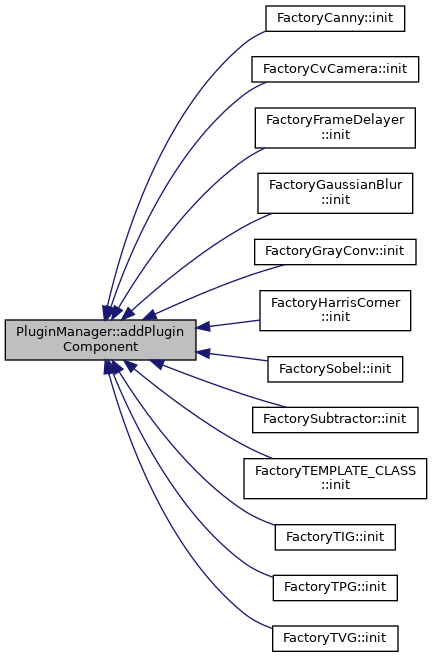

Here is the caller graph for this function:

createInstance()

template<class T >

T* PluginManager::createInstance ( QString const &  className )

inline

createInstance creates a single instance of a class from a given className

Parameters

className

the name of the class to be instantiated

Returns

T* the instance of a class or a nullptr

Here is the caller graph for this function:

createInstances()

template<class T >

QVector<T*> PluginManager::createInstances ( )

inline

createInstances creates all instances of a plugin and returns them in a vector

Parameters

T	the plugin type

Returns

QVector<T*> a vector with plugin component instances

lastError()

QString const & PluginManager::lastError

(

)

lastError returns the last error message of the plugin manager

Returns

a QString error message

pluginMetaDataList()

QList< PluginMetaData * > PluginManager::pluginMetaDataList

(

)

pluginMetaDataList returns the list of plugins found in the specified directories

Returns

a QList of PluginMetaData*

pluginPath()

QStringList const & PluginManager::pluginPath

(

)

pluginPath

Returns

a QStringList containing all plugin directories

postInit()

bool PluginManager::postInit ( )

protectedvirtual

postInit will be called after all components and singletons have been constructed/initialized

Returns

true if post initialization was successfull

Implements AbstractSingleton.

preDestroy()

bool PluginManager::preDestroy ( )

protectedvirtual

preDestroy will be called before any of the components and singletons will be destructed/deinitailized

Returns

true if pre destruction was successfull

Implements AbstractSingleton.

serializePluginMetaData

void PluginManager::serializePluginMetaData ( PluginMetaData *  metaData )

slot

serializePluginState serializes the submitted meta data

Parameters

metaData

the plugin meta data

setPluginPath()

void PluginManager::setPluginPath

(

const QStringList &

directory

)

setPluginPath adds a new directory path to the plugin path

Parameters

directory,the

path to be added

---

The documentation for this class was generated from the following files:

• itemframework/itemframework/include/plugin/plugin_manager.h
• itemframework/itemframework/src/plugin/plugin_manager.cpp
