The GuiManager class handels widgets and actions on the main window. More...

#include <gui_manager.h>

Inheritance diagram for GuiManager:

Collaboration diagram for GuiManager:

Signals
void	mainWindowActivationChange ()
	is emited when the activation of the main window changed

Public Member Functions
void	setMode (GuiMode mode)
	Sets the GUI mode to `mode`. More...

QWidget *	removeWidget (QString const &name)
	removeFromLayout removes widget from the GUI. Caller takes ownership of the widget More...

bool	addWidget (QWidget *widget, QString const &name, WidgetArea area, WidgetType type=WidgetType::DockWidget)
	Adds a widget to the mainwindow. More...

QString	addWidget (QWidget *widget, WidgetArea area, WidgetType type=WidgetType::DockWidget)
	Adds a widget to the mainwindow. Uses the objectName or className as name. Appends a number if a a widget is already stored with that name. More...

bool	moveWidget (QString const &name, WidgetArea area)
	moveWidget change the position of a widget More...

void	setVisible (QString const &name, bool visible)
	setVisible changes the visibility of a widget More...

QWidget *	widgetReference ()
	widgetReference method to access the main window More...

bool	addAction (QAction *action, QString const &name, QString const &parent)
	adds an action a menu or a toolbar More...

bool	addActionToParent (QString const &name, QString const &parent)
	Adds the action name to the action or widget parent. More...

QString	addAction (QAction *action, QString const &parent)
	Adds an action to a menu or a toolbar Uses the objectName or className as name. Appends a number if something is already stored with that name. More...

QAction *	action (QString const &name) const
	Access to reference of an action. More...

QAction *	removeAction (QString const &name, QString const &parent=QString())
	Removes an action from the gui and returns it. More...

void	registerCloseHandler (std::function< bool()> callback)
	This callback will be executed by an application close event. If the callback returns true the close process will be continue -> shutdown application. If the callback returns false the close process will be interrupted. More...

QStringList	parents (QString const &name)
	Access to the names of the parents of an registered action. More...

QStringList	children (QString const &name) const
	Access to the names of the children of an registered action or widget. More...

QStringList	registeredActions () const
	Access to all the names of the registered actions. More...

QStringList	registeredWidgets () const
	Access to all the names of the registered widgets. More...

QStringList	registeredWidgets (WidgetType type) const
	registeredWidgets return all registered widgets of the given type More...

bool	mainWindowIsActive () const
	mainWindowIsActive More...

Protected Member Functions
bool	postInit ()
	postInit will be called after all components and singletons have been constructed/initialized More...

bool	preDestroy ()
	preDestroy will be called before any of the components and singletons will be destructed/deinitailized More...

Additional Inherited Members
Static Public Member Functions inherited from Singleton< GuiManager >
static GuiManager *	instance ()
	Returns the current instance of the singleton. More...

Detailed Description

The GuiManager class handels widgets and actions on the main window.

Member Function Documentation

◆ action()

QAction * GuiManager::action ( QString const & name ) const

Access to reference of an action.

Parameters

name	Name of the action

Returns: Reference to the action, NULL when it doesn't exist

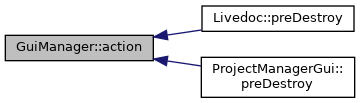

Here is the caller graph for this function:

◆ addAction() [1/2]

bool GuiManager::addAction	(	QAction *	action,
		QString const &	name,
		QString const &	parent
	)

adds an action a menu or a toolbar

Parameters

Action	The action that is added, GuiManager doesn't takes ownership, can't be NULL
Name	The name of the action, is used to access the action later on, must be unique or
parent	The name of the parent under which the action is added, parent must be an action that is a menu, a menubar when the action is a menu or a toolbar when the action isn't a menu

Returns: True when the action could be added

◆ addAction() [2/2]

QString GuiManager::addAction	(	QAction *	action,
		QString const &	parent
	)

Adds an action to a menu or a toolbar
Uses the objectName or className as name.
Appends a number if something is already stored with that name.

Parameters

action	Pointer to the action, GuiManager doesn't takes ownership
parent	The name of the parent under which the action is added, parent must be an action that is a menu, a menubar when the action is a menu or a toolbar when the action isn't a menu

Returns: name under which the action was added, is empty when the widget couldn't be added

◆ addActionToParent()

bool GuiManager::addActionToParent	(	QString const &	name,
		QString const &	parent
	)

Adds the action name to the action or widget parent.

Parameters

name	Name of the action or widget, must be an action
parent,The	name of the parent under which the action is added, parent must be an action that is a menu, a menubar when the action is a menu or a toolbar when the action isn't a menu

Returns: True when the action could be added to parent

◆ addWidget() [1/2]

bool GuiManager::addWidget	(	QWidget *	widget,
		QString const &	name,
		WidgetArea	area,
		WidgetType	type = `WidgetType::DockWidget`
	)

Adds a widget to the mainwindow.

Parameters

widget	pointer to the widget, action that are already within a Toolbar or MenuBar are also registered whe
name	name of the specified widget, name can be used to access the widget later, must be unique
area	dock- or toolbox-area where the widget will be placed, use WidgetType::NoArea for other widgets
type	what type of widget it is. Note that if a widget with a type that occurs only once (CentralWidget, MenuBar, StatusBar) is added, the old widget will be deleted.

Returns: true if the widget could be added

Takes the ownership of the passed window

Here is the caller graph for this function:

◆ addWidget() [2/2]

QString GuiManager::addWidget	(	QWidget *	widget,
		WidgetArea	area,
		WidgetType	type = `WidgetType::DockWidget`
	)

Adds a widget to the mainwindow.
Uses the objectName or className as name.
Appends a number if a a widget is already stored with that name.

Parameters

widget	pointer to the widget, action that are already within a Toolbar or MenuBar are also registered
area	dock- or toolbox-area where the widget will be placed, use WidgetType::NoArea for other widgets
type	what type of widget it is. Note that if a widget with a type that occurs only once (CentralWidget, MenuBar, StatusBar) is added, the old widget will be deleted.

Returns: name under which the widget was added, is empty when the widget couldn't be added

Takes the ownership of the passed window

◆ children()

QStringList GuiManager::children ( QString const & name ) const

Access to the names of the children of an registered action or widget.

Parameters

name	Name of the action or widget

Returns: List of the names of all children of name

◆ mainWindowIsActive()

bool GuiManager::mainWindowIsActive ( ) const

mainWindowIsActive

Returns: State of the main window

◆ moveWidget()

bool GuiManager::moveWidget	(	QString const &	name,
		WidgetArea	area
	)

moveWidget change the position of a widget

Parameters

name	name of the widget that should be moved
area	area where the widget will be moved to

Returns: true if the action was successful

◆ parents()

QStringList GuiManager::parents ( QString const & name )

Access to the names of the parents of an registered action.

Parameters

name	Name of the action

Returns: List of the names of all parents of name

◆ postInit()

bool GuiManager::postInit ( )

protectedvirtual

postInit will be called after all components and singletons have been constructed/initialized

Returns: true if post initialization was successfull

Implements AbstractSingleton.

◆ preDestroy()

bool GuiManager::preDestroy ( )

protectedvirtual

preDestroy will be called before any of the components and singletons will be destructed/deinitailized

Returns: true if pre destruction was successfull

Implements AbstractSingleton.

Here is the call graph for this function:

◆ registerCloseHandler()

void GuiManager::registerCloseHandler ( std::function< bool()> callback )

This callback will be executed by an application close event. If the callback returns true the close process will be continue -> shutdown application. If the callback returns false the close process will be interrupted.

Parameters

std::function<bool> callback

Here is the caller graph for this function:

◆ registeredActions()

QStringList GuiManager::registeredActions ( ) const

Access to all the names of the registered actions.

Returns: List containing all names of the registered actions

◆ registeredWidgets() [1/2]

QStringList GuiManager::registeredWidgets ( ) const

Access to all the names of the registered widgets.

Returns: List containing all names of the registered widgets

◆ registeredWidgets() [2/2]

QStringList GuiManager::registeredWidgets ( WidgetType type ) const

registeredWidgets return all registered widgets of the given type

Parameters

type	Type to be returned

Returns: Names of widgets

◆ removeAction()

QAction * GuiManager::removeAction	(	QString const &	name,
		QString const &	parent = `QString()`
	)

Removes an action from the gui and returns it.

Parameters

name	name of the action
parent	parent of the action, will remove all occurences if string is empty. None when parent doesn't exist

Returns: removed action, NULL when name or parent doesn't exist

◆ removeWidget()

QWidget * GuiManager::removeWidget ( QString const & name )

removeFromLayout removes widget from the GUI. Caller takes ownership of the widget

Parameters

widget id that is removed

Returns: Pointer to QDockWidget. Null if nothing has been removed.

◆ setMode()

void GuiManager::setMode ( GuiMode mode )

Sets the GUI mode to mode.

Parameters

mode	The new GUI mode to use

Here is the call graph for this function:

◆ setVisible()

void GuiManager::setVisible	(	QString const &	name,
		bool	visible
	)

setVisible changes the visibility of a widget

Parameters

name	name of the widget
visible	value that the visibility is set to

◆ widgetReference()

QWidget * GuiManager::widgetReference ( )

widgetReference method to access the main window

Returns: refrence to the mainwindow

The documentation for this class was generated from the following files:

itemframework/itemframework/include/gui/gui_manager.h
itemframework/itemframework/moc/moc_gui_manager.cpp
itemframework/itemframework/src/gui/gui_manager.cpp
